Equivalent to DHS4E4D142KL2B DHS4E4D142MLXB CT8G 20KV 1400PF High Voltage Doorknob Ceramic Capacitor
Cixi AnXon Electronic Co., Ltd is a leader in the design and manufacture of complex electronic ceramic
components and assemblies used in a wide range of applications and cutting edge technologies. AnXon
specializes in the development and production of dielectric and ferroelectric materials and components.
Main Specifications
Rated DC voltage
20kVdc
Rated Capacitance
1400PF ±10% (20ºC,1kHz,1Vrms)
Ceramic dielectric material
N4700
Part Number
AXCT8GE40142K2D1B

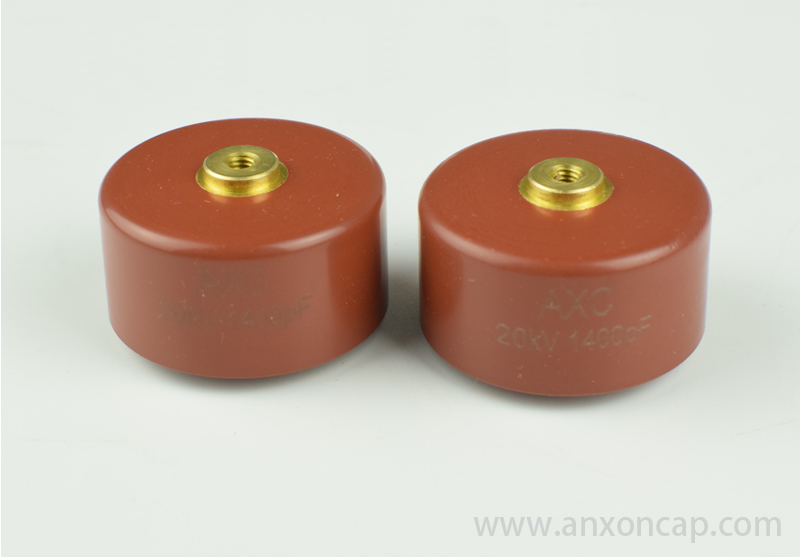

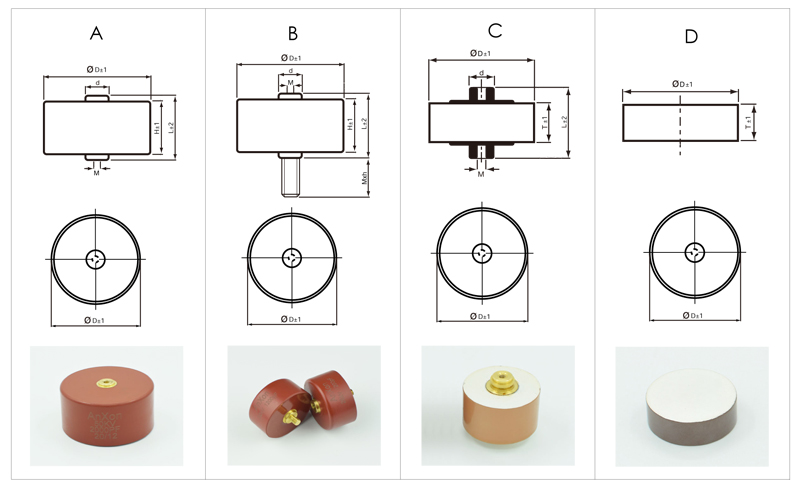

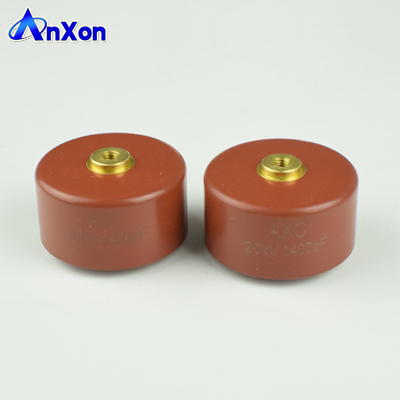

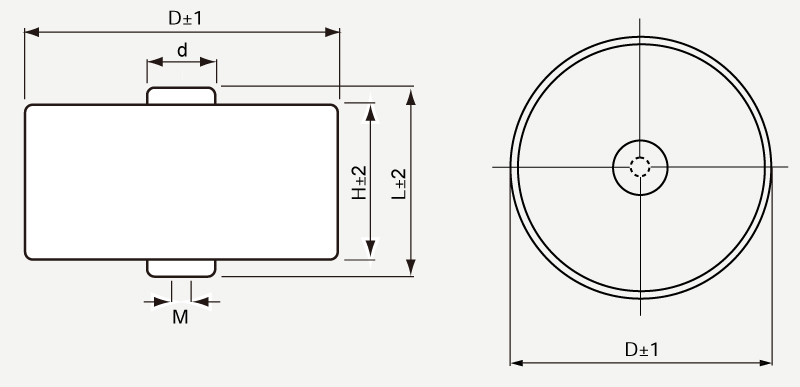

Dimensions
D38 x H20 x L24, M4 (other value available on request)
Dissipation factor
Max 0.2%
Capacitance change with temperature
+22/-33%
Withstand voltage test
1.5 times Rated DC Voltage (50Hz, in oil, 60s)
Insulation resistance (1000Vdc/60s)
>100GΩ
Operating Temperature ranges
-30 +85ºC
Partial Discharge Test (PD)
20pC 20kV, other value available on request
Self-inductance (ESL)
LS ≤ 30nH
Other Product Types
Cixi AnXon Electronic is committed to providing customers with mature, high quality, high reliability and customized
high voltage ceramic capacitors. It is suitable for various high voltage, high frequency, high power, high temperature
and high current applications.The main materials are: NP0, COG, SL, DL, K1000, N4700, Y5T, Y5S, Y5P, Y5R, Y5U
Rated Products
Part Number
AnXon Equivalent
Temperature
characteristics
Rated Voltage
Capacitance
Tolerance of
capacitance
DHSF44D102ZH2B
AXCT8GD30102K2D1B
Y5T
20kVdc
1000pF
±10%
DHSF44D102ZHXB
AXCT8GD30102K2D1B
Y5T
20kVdc
1000pF
±10%
DHSF44F182ZN2B
AXCT8GD30182K3D1B
Y5T
30kVdc
1800pF
±10%
DHSF44F182ZNXB
AXCT8GD30182K3D1B
Y5T
30kVdc
1800pF
±10%
DHSF44G192ZR2B
AXCT8GD30192K4D1B
Y5T
40kVdc
1900pF
±10%
DHSF44G192ZRXB
AXCT8GD30192K4D1B
Y5T
40kVdc
1900pF
±10%
DHS4E4D252KR2B
AXCT8GD30252K2D1B
Y5T
20kVdc
2500pF
±10%
DHS4E4D252MRXB
AXCT8GD30252K2D1B
Y5T
20kVdc
2500pF
±10%
DHSF44F252ZR2B
AXCT8GD30252K3D1B
Y5T
30kVdc
2500pF
±10%
DHSF44F252ZRXB
AXCT8GD30252K3D1B
Y5T
30kVdc
2500pF
±10%
DHSF44G272ZT2B
AXCT8GD30272K4D1B
Y5T
40kVdc
2700pF
±10%
DHSF44G272ZTXB
AXCT8GD30272K4D1B
Y5T
40kVdc
2700pF
±10%
DHSF44D332ZR2B
AXCT8GD30332K2D1B
Y5T
20kVdc
3300pF
±10%
DHSF44D332ZRXB
AXCT8GD30332K2D1B
Y5T
20kVdc
3300pF
±10%
DHSF44F362ZT2B
AXCT8GD30362K3D1B
Y5T
30kVdc
3600pF
±10%
DHSF44F362ZTXB
AXCT8GD30362K3D1B
Y5T
30kVdc
3600pF
±10%
DHSF44F461ZD2B
AXCT8GD30461K3D1B
Y5T
30kVdc
460pF
±10%
DHSF44F461ZDXB
AXCT8GD30461K3D1B
Y5T
30kVdc
460pF
±10%
DHSF44D482ZT2B
AXCT8GD30482K2D1B
Y5T
20kVdc
4800pF
±10%
DHSF44D482ZTXB
AXCT8GD30482K2D1B
Y5T
20kVdc
4800pF
±10%
DHS4E4C112KH2B
AXCT8GE40112KZD1B
N4700
15kVdc
1100pF
±10%
DHS4E4C112MHXB
AXCT8GE40112KZD1B
N4700
15kVdc
1100pF
±10%
DHS4E4A122KH2B
AXCT8GE40122KYD1B
N4700
10kVdc
1200pF
±10%
DHS4E4A122MHXB
AXCT8GE40122KYD1B
N4700
10kVdc
1200pF
±10%
DHS4E4A282KL2B
AXCT8GE40122KYD1B
N4700
10kVdc
2800pF
±10%
DHS4E4A282MLXB
AXCT8GE40122KYD1B
N4700
10kVdc
2800pF
±10%
DHS4E4G132KR2B
AXCT8GE40132K4D1B
N4700
40kVdc
1300pF
±10%
DHS4E4G132MRXB
AXCT8GE40132K4D1B
N4700
40kVdc
1300pF
±10%
DHSF44G132ZN2B
AXCT8GE40132K4D1B
N4700
40kVdc
1300pF
±10%
DHSF44G132ZNXB
AXCT8GE40132K4D1B
N4700
40kVdc
1300pF
±10%
DHS4E4G141KC2B
AXCT8GE40141K4D1B
N4700
40kVdc
140pF
±10%
DHS4E4G141MCXB
AXCT8GE40141K4D1B
N4700
40kVdc
140pF
±10%
DHS4E4D142KL2B
AXCT8GE40142K2D1B
N4700
20kVdc
1400pF
±10%
DHS4E4D142MLXB
AXCT8GE40142K2D1B
N4700
20kVdc
1400pF
±10%
DHS4E4F172KR2B
AXCT8GE40172K3D1B
N4700
30kVdc
1700pF
±10%
DHS4E4F172MRXB
AXCT8GE40172K3D1B
N4700
30kVdc
1700pF
±10%
DHS4E4F191KC2B
AXCT8GE40191K3D1B
N4700
30kVdc
190pF
±10%
DHS4E4F191MCXB
AXCT8GE40191K3D1B
N4700
30kVdc
190pF
±10%
DHS4E4C192KL2B
AXCT8GE40192KZD1B
N4700
15kVdc
1900pF
±10%
DHS4E4C192MLXB
AXCT8GE40192KZD1B
N4700
15kVdc
1900pF
±10%
DHS4E4G202KT2B
AXCT8GE40202K4D1B
N4700
40kVdc
2000pF
±10%
DHS4E4G202MTXB
AXCT8GE40202K4D1B
N4700
40kVdc
2000pF
±10%
DHS4E4F272KT2B
AXCT8GE40272K3D1B
N4700
30kVdc
2700pF
±10%
DHS4E4F272MTXB
AXCT8GE40272K3D1B
N4700
30kVdc
2700pF
±10%
DHS4E4D281KC2B
AXCT8GE40281K2D1B
N4700
20kVdc
280pF
±10%
DHS4E4D281MCXB
AXCT8GE40281K2D1B
N4700
20kVdc
280pF
±10%
DHS4E4C342KR2B
AXCT8GE40342KZD1B
N4700
15kVdc
3400pF
±10%
DHS4E4C342MRXB
AXCT8GE40342KZD1B
N4700
15kVdc
3400pF
±10%
DHS4E4D402KT2B
AXCT8GE40402K2D1B
N4700
20kVdc
4000pF
±10%
DHS4E4D402MTXB
AXCT8GE40402K2D1B
N4700
20kVdc
4000pF
±10%
DHS4E4G441KH2B
AXCT8GE40441K4D1B
N4700
40kVdc
440pF
±10%
DHS4E4G441MHXB
AXCT8GE40441K4D1B
N4700
40kVdc
440pF
±10%
DHS4E4A502KR2B
AXCT8GE40502KYD1B
N4700
10kVdc
5000pF
±10%
DHS4E4A502MRXB
AXCT8GE40502KYD1B
N4700
10kVdc
5000pF
±10%
DHS4E4C532KT2B
AXCT8GE40532KZD1B
N4700
15kVdc
5300pF
±10%
DHS4E4C532MTXB
AXCT8GE40532KZD1B
N4700
15kVdc
5300pF
±10%
DHS4E4A561KC2B
AXCT8GE40561KYD1B
N4700
10kVdc
560pF
±10%
DHS4E4A561MCXB
AXCT8GE40561KYD1B
N4700
10kVdc
560pF
±10%
DHS4E4F591KH2B
AXCT8GE40591K3D1B
N4700
30kVdc
590pF
±10%
DHS4E4F591MHXB
AXCT8GE40591K3D1B
N4700
30kVdc
590pF
±10%
DHS4E4G701KL2B
AXCT8GE40701K4D1B
N4700
40kVdc
700pF
±10%
DHS4E4G701MLXB
AXCT8GE40701K4D1B
N4700
40kVdc
700pF
±10%
DHS4E4D881KH2B
AXCT8GE40881K2D1B
N4700
20kVdc
880pF
±10%
DHS4E4D881MHXB
AXCT8GE40881K2D1B
N4700
20kVdc
880pF
±10%
DHS4E4F941KL2B
AXCT8GE40941K3D1B
N4700
30kVdc
940pF
±10%
DHS4E4F941MLXB
AXCT8GE40941K3D1B
N4700
30kVdc
940pF
±10%
Notes
* Withstand voltage test: Un≤80kV 1.5 times Un, Un＞80kV 1.2 times Un, this is minimum figures,
* Standard capacitance tolerance: ±10%, others available on request.
* All specifications are designed for our current customers, other voltage, capacitance, dimensions available on request.
* Larger capacitance and higher voltage capacitor banks available on request.
Main Applications

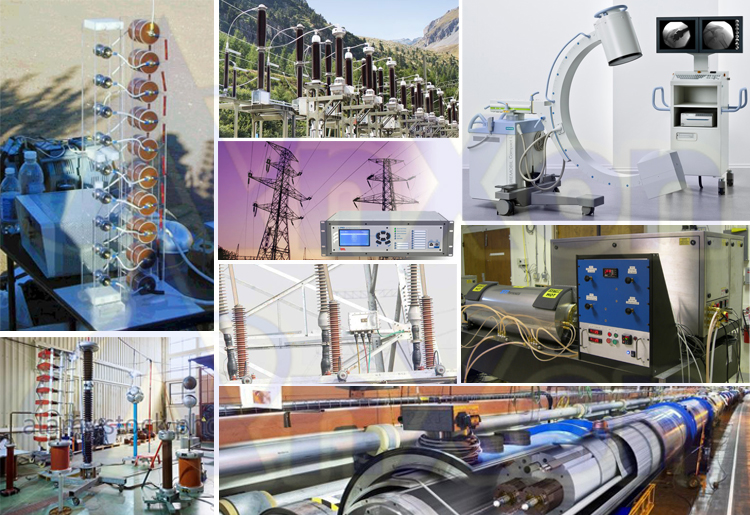

The main applications include live line indicators, AC dividers, grading systems for power distribution network, protection for
HV switches and power circuit breakers. Coupling, by-passing high frequency circuits also use HV ceramic disc capacitors.
Laser pulses circuitry, high energy and high voltage test equipment (HV accelerators, physics research) require products
especially adapted to their specific requirements.
• High voltage supply for gas laser
• High-voltage dividers
• Marx generators, Power generators
• High voltage columns for collider of HV accelerator
• High-voltage coupling devices
• Power line coupling system for Internet & Telecom
• Lightning arresters, voltage distribution systems
• HV Power Supply for X-ray, excimer lasers
Production & Quality Management

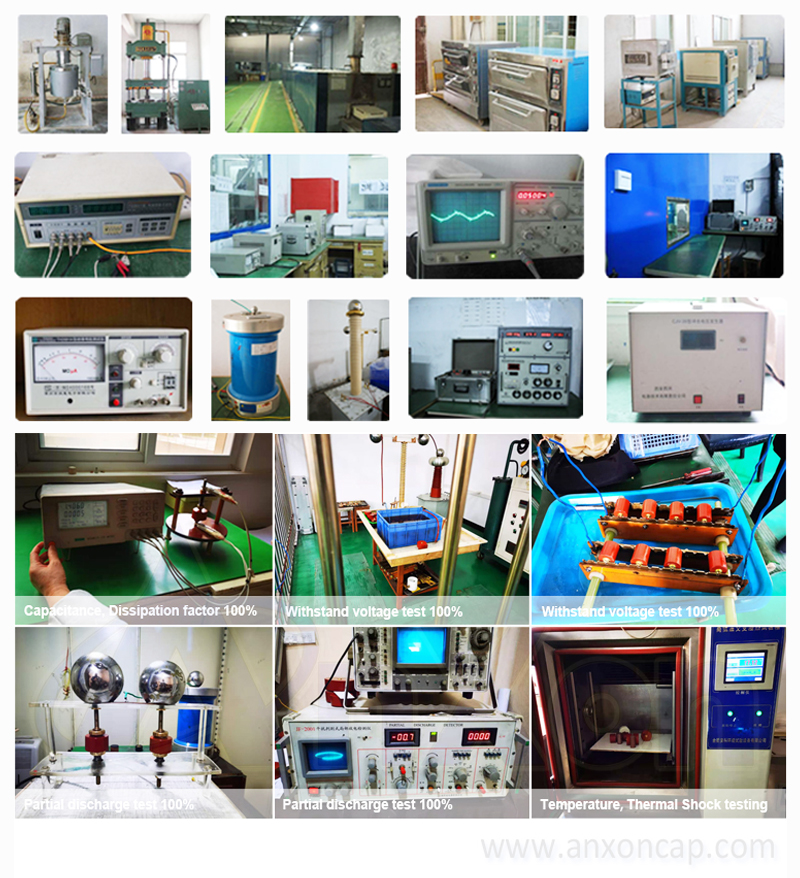

High voltage doorknob ceramic capacitors from AnXon are 100% tested of the below parameters
