250V 27000UD 3000hrs 105C Screw Terminals Electrolytic Capacitor 250V 27000MFD

Home > Products > Electrolytic Capacitor > Screw Terminals Electrolytic Capacitor >

Model Number: C96 Aluminum electrolytic capacitor
Type: Aluminum Electrolytic Capacitor
Place of Origin: Zhejiang, China
Brand Name: AnXon Aluminum electrolytic capacitor
Capacitance: 27000UF
Media Available: datasheet, Photo
Package Type: Through Hole
Rated Voltage: 250V
Operating Temperature: -40C ~ +85C
Application: General Purpose, General Purpose

Description

Products Description

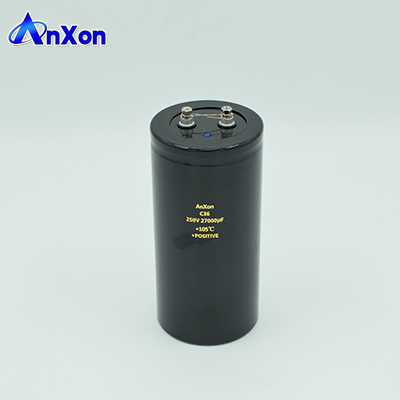

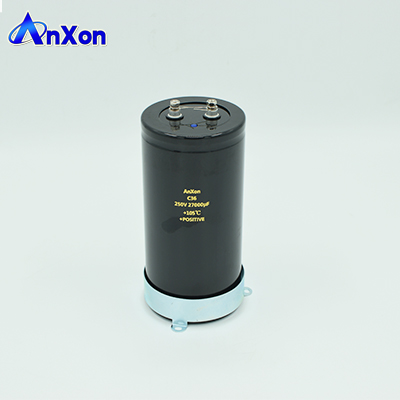

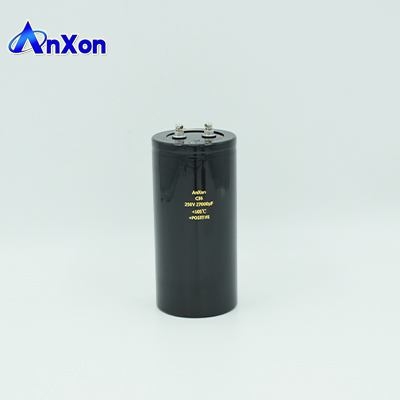

250V 27000UD 3000hrs 105C Screw Terminals Electrolytic Capacitor 250V 27000MFD

Screw terminal aluminum electrolytic capacitor 250V 27000UF, Screw type Large can aluminum electrolytic capacitor 250V, 250V 27000MFD Bolt type Electrolytic Capacitor, 27000UF 250V 3000 hours 105C electrolytic capacitor offered by AnXon Electronic

Rated Spec:	250V 27000uF, 250V 27000MFD
Tolerance:	M, ±20%
Type:	Screw terminal, Large can, Bolt type
Load life :	3000 hours at 105℃
Operating Temperature:	-40℃ ~ +85℃
Size / Dimension(ΦD×L):	D: 89mm, L: 185mm

Our Advantage :

Short lead time, quick delivery

Low cost price , great quality

100% convinced by world class customers

Custom case size capacitor available

Screw Terminal Large Can Aluminum Electrolytic Capacitor Application Guide

• UPS, Industrial power supply

• Frequency converters, Wind power converters

• Switch-mode power supplies

• Solar inverters

• Professional power supplies

Aluminum Electrolytic Capacitors with screw terminals 10V, 16V, 25V, 35V, 50V, 63V, 80V, 100V, 160V, 200V, 250V, 350V, 400V, 450V, 63V Informations

Series	Spec.	Cap Code	Dimension(mm)		Load life
Series	Spec.	Cap Code	D	L	Load life
C96	250V 4700UF	472	50	120	85℃ 2000 hours
	250V 10000UF	103	76	140
	250V 15000UF	153	76	180
	250V 22000UF	223	89	157
	250V 27000UF	273	89	185
	250V 30000UF	303	89	235
	250V 33000UF	333	89	235
